Nitro Factory
Quick Swap Base System
Quick Swap Base System
Couldn't load pickup availability
申し訳ございません。こちらの商品は在庫がありません
メールアドレスを登録していただくことで、在庫入荷時にお知らせいたします。
こちらのメールアドレスは、在庫のお知らせ以外では使用されません。
※ The socket base cannot be used on its own. (Swapping inserts requires at least one socket base and two inserts.)
※ Shipping may currently take around 4–5 days. Thank you for your understanding in advance.
▶︎ Purpose
This is a custom part that allows you to swap the bottom plate of the GPX SL2 with a single touch.
You can easily switch between different mouse skates depending on the game title or mousepad.
Since you no longer need to peel off the skates, you can avoid the risk of damaging them during replacement.

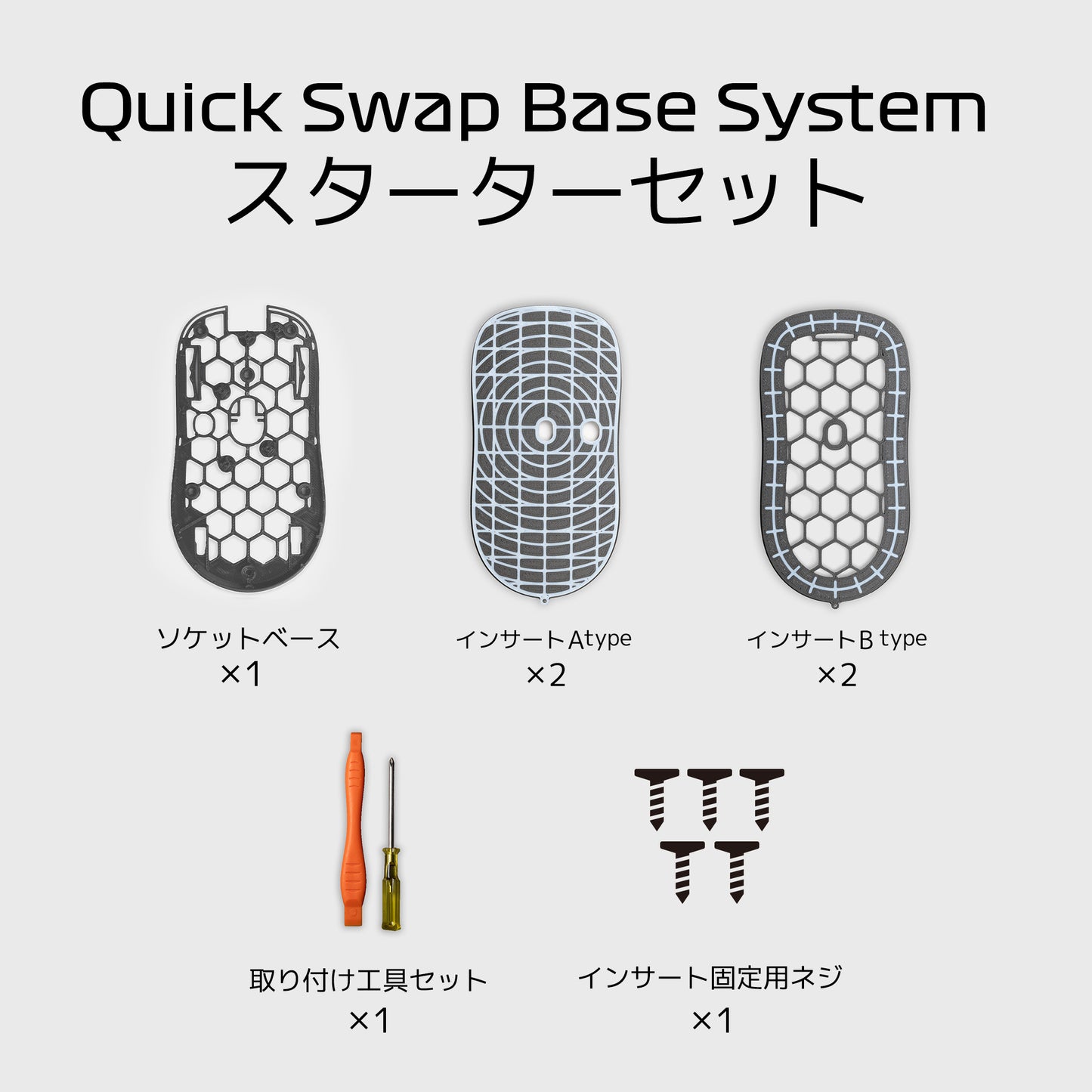

▶︎ Parts Description
Socket Base: The component that attaches to the mouse body.
Insert (Type A): The swappable part (standard version).
Insert (Type B): The swappable part (lightweight version with cutouts).
Screws: Can be used to secure the insert if you are concerned about it coming loose.
▶︎ Weight
Socket Base: 5g
Insert (Type A): 6g
Insert (Type B): 3g
Reference: Original bottom plate: approx. 10g (8g base + 1.7g cover + 0.6g magnets)
▶︎ Installation Instructions

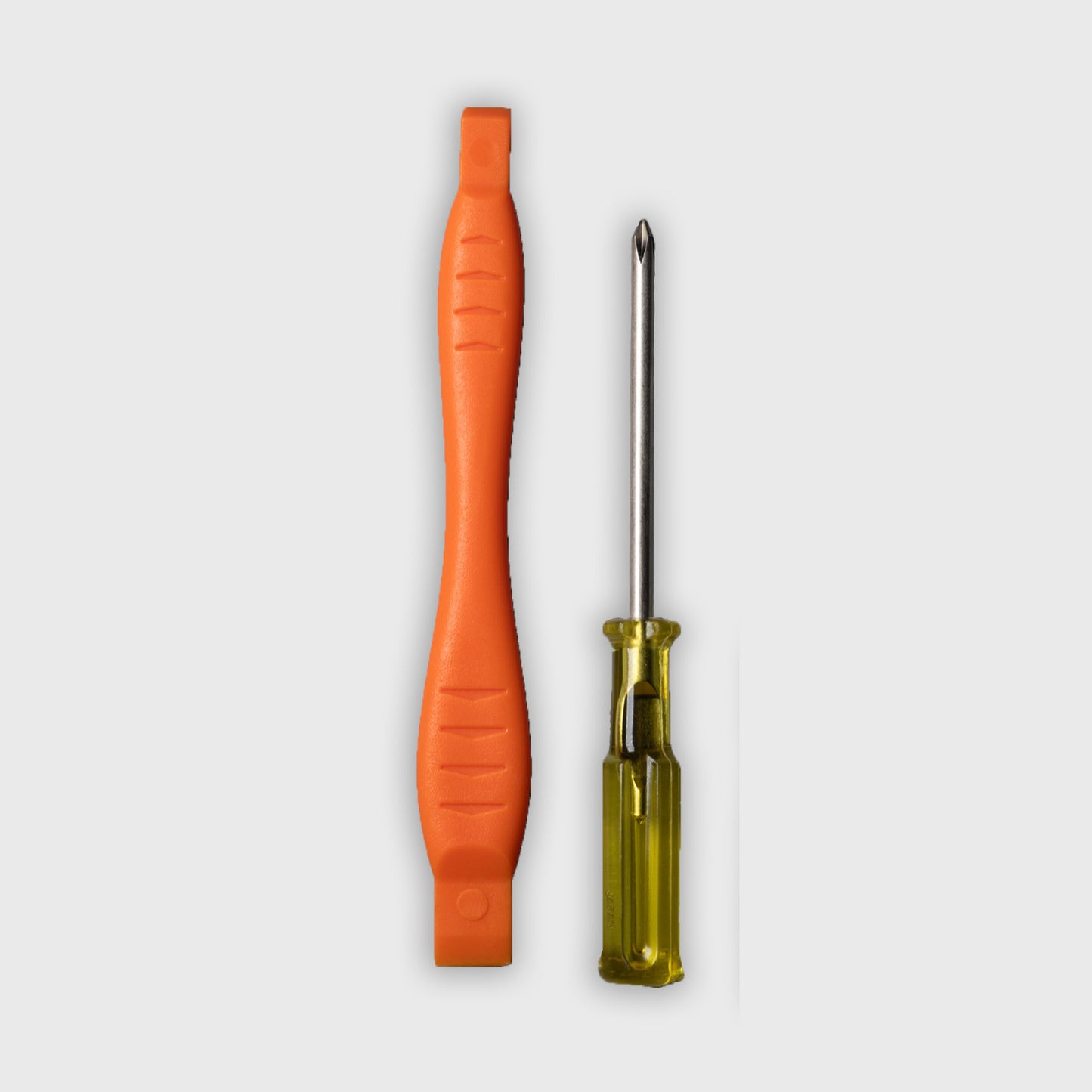

STEP 0: Prepare a #0 Phillips screwdriver.
STEP 1: Remove the original bottom plate from the GPX SL2 and detach the PCB from it. (Be sure to unplug the magnetic connector.)
STEP 2: Attach the PCB to the socket base.
STEP 3: Secure the socket base to the mouse body. (Do not overtighten the screws—just turn them gently until they stop.)
If there is any looseness after installation, it may be due to overtightening or warping of the mouse shell. In that case, loosen the screws and then tighten them again lightly.
▶︎ Cautions
・The socket alone is not functional. You need both a socket and at least one insert to use this product.
・The product comes in a protective sleeve, but the sleeve is considered packaging material to prevent damage. Returns or exchanges due to sleeve damage are not accepted.
・Not compatible with POWERPLAY / POWERPLAY 2.
・We are not responsible for any damage or loss resulting from the installation or use of this product. Please perform any modifications at your own risk.
・Installation of this product may violate local laws or regulations in your country or region. Please confirm before use and proceed at your own discretion.
